Trapezoidal sheets
and facade profiles.
Trapezoidal sheets and facade profiles offer a modern solution for a wide variety of construction projects and stand out for their durability and versatility. Thanks to high-quality craftsmanship, long-lasting coatings, and a wide selection of profile shapes and colors, they reliably meet individual requirements, whether in industrial and commercial construction or in residential projects.
Trapezoidal and facade profiles
in various versions.

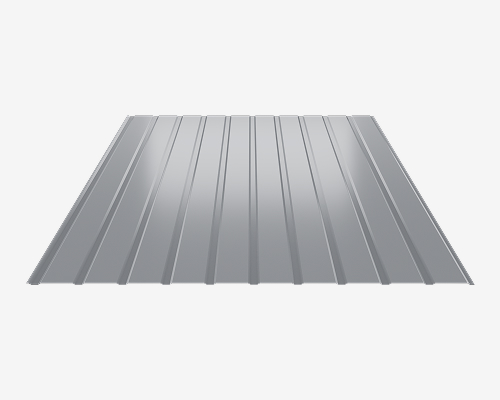

TRB - 6/1200 Facade profile - Trapezoidal sheet metal
Total width: 1225 mm
The effective width: 1200 mm
Sheet thickness: 0,5 - 0,7 mm
Length of the module: 500 - 6000 mm
The total height: 5 mm
Available in coatings: X-Matt GreenCoat Crown BT, Polyester gloss, Ultramat, Alu-zink, Zink, S-PURE, Safe Matt
Available foiling for the facade profile
Minimal roof slope: 6° (10%)

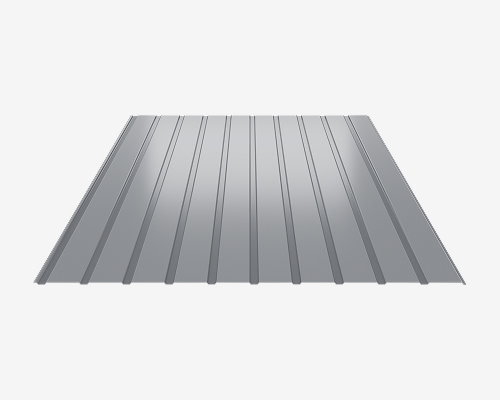

TRB - 8/1170 Facade profile - Trapezoidal sheet metal
Total width: 1189 mm
The effective width: 1170 mm
Sheet thickness: 0,5 - 0,7 mm
Length of the module: 500 - 6000 mm
The total height: 7 mm
Available in coatings: X-Matt GreenCoat Crown BT, Polyester gloss, Ultramat, Alu-zink, Zink, S-PURE, Safe Matt
Available foiling for the facade profile
Minimal roof slope: 6° (10%)

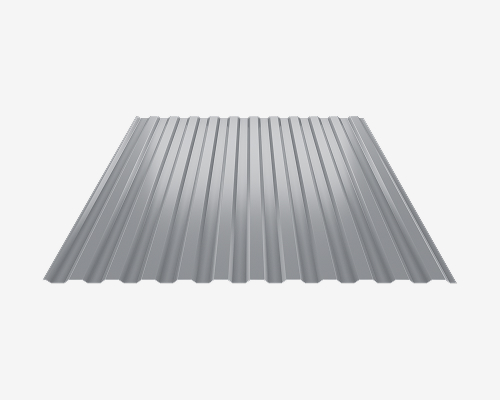

TRB - 12/1120 Roof profile / Facade profile - Trapezoidal sheet metal
Total width: 1154/1160 mm
The effective width: 1200 mm
Sheet thickness: 0,5 - 0,7 mm
Length of the module: 500 - 8000 mm
The total height: 12 mm
Available in coatings: X-Matt GreenCoat Crown BT, Polyester gloss, Ultramat, Alu-zink, Zink, S-PURE, Safe Matt
Available foiling for the facade profile
Minimal roof slope: 6° (10%)

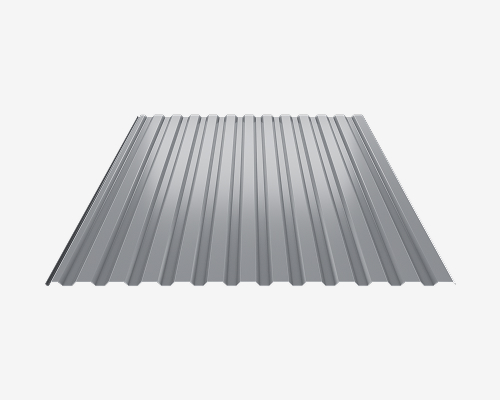

TRB - 14/1080 Roof profile /Facade profile - Trapezoidal sheet metal
Total width: 1117/1132 mm
The effective width: 1080 mm
Sheet thickness: 0,5 - 0,75 mm
Length of the module: 500 - 7600 mm
The total height: 5 mm
Available in coatings: X-Matt GreenCoat Crown BT, Polyester gloss, Ultramat, Alu-zink, Zink, S-PURE, Safe Matt
Available foiling for the facade profile
Minimal roof slope: 6° (10%)

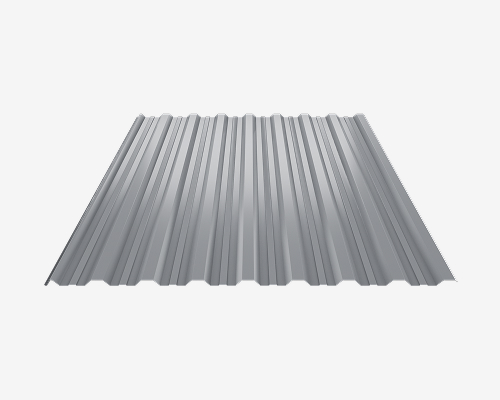

TRB - 18/110 Roof profile / Facade profile - Trapezoidal sheet metal
Total width: 1138 mm
The effective width: 1100 mm
Sheet thickness: 0,5 - 0,75 mm
Length of the module: 500 - 6000 mm
The total height: 18 mm
Available in coatings: X-Matt GreenCoat Crown BT, Polyester
gloss, Ultramat, Alu-zink, Zink, S-PURE, Safe Matt
Available foiling for the facade profile
Minimal roof slope: 6° (10%)

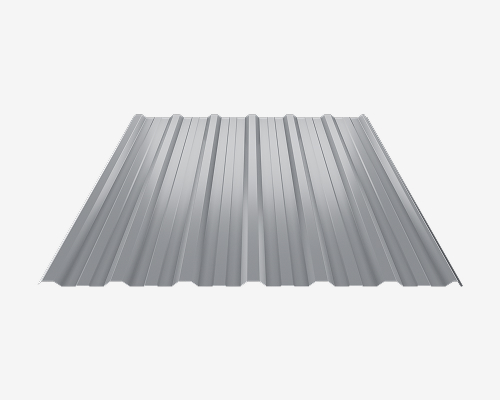

TRB - 18/1124 Roof profile / Facade profile - Trapezoidal sheet metal
Total width: 1163/1170 mm
The effective width: 1124 mm
Sheet thickness: 0,5 - 0,75 mm
Length of the module: 500 - 12000 mm
The total height: 17 mm
Available in coatings: X-Matt GreenCoat Crown BT, Polyester
gloss, Ultramat, Alu-zink, Zink, S-PURE, Safe Matt
Available foiling for the facade profile
Additional coating - Available with the DRIPSTOP anticondensation liner.
Minimal roof slope: 6° (10%)

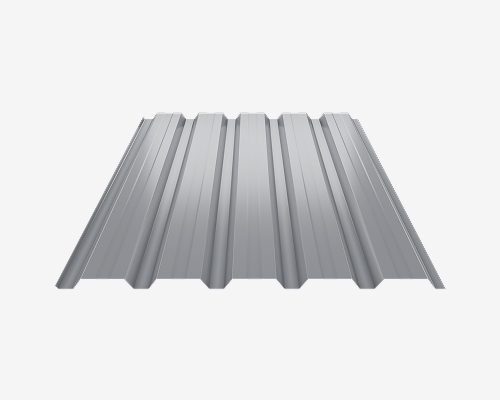

TRB - 35/1035 Roof profile / Facade profile - Trapezoidal sheet metal
Total width: 1070 mm
The effective width: 1035 mm
Sheet thickness: 0,5 - 0,75 mm
Length of the module: 500 - 12000 mm
The total height: 34 mm
Available in coatings: X-Matt GreenCoat Crown BT, Polyester
gloss, Ultramat, Alu-zink, Zink, S-PURE, Safe Matt
Available foiling for the facade profile
Additional coating - Available with the DRIPSTOP anticondensation liner.
Minimal roof slope: 4° (7%)

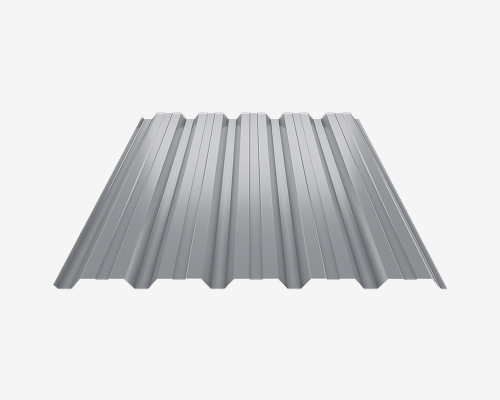

TRB - 35/1050 Roof profile / Facade profile - Trapezoidal sheet metal
Total width: 1080 mm
The effective width: 1050 mm
Sheet thickness: 0,5 - 0,75 mm
Length of the module: 500 - 12000 mm
The total height: 35 mm
Available in coatings: X-Matt GreenCoat Crown BT, Polyester gloss, Ultramat, Alu-zink, Zink, S-PURE, Safe Matt
Available foiling for the facade profile
Additional coating - Available with the DRIPSTOP anticondensation liner.
Minimal roof slope: 4° (7%)

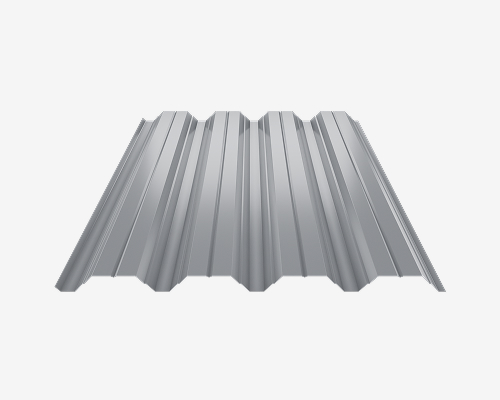

TRB - 50/1040 Roof profile / Facade profile - Trapezoidal sheet metal
Total width: 1074 mm
The effective width: 1040 mm
Sheet thickness: 0,5 - 0,75 mm
Length of the module: 500 - 12000 mm
The total height: 50 mm
Available in coatings: X-Matt GreenCoat Crown BT, Polyester gloss, Ultramat, Alu-zink, Zink, S-PURE, Safe Matt
Available foiling for the facade profile
Additional coating - Available with the DRIPSTOP anticondensation liner.
Minimal roof slope: 4° (7%)

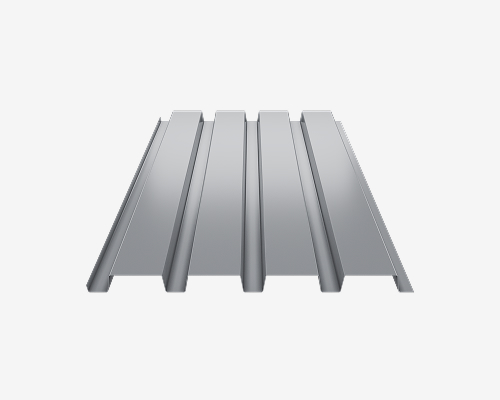

TRB - 55K/854 Roof profile / Facade profile - Trapezoidal sheet metal
Total width: 900 mm
The effective width: 854 mm
Sheet thickness: 0,5 - 0,75 mm
Length of the module: 500 - 12000 mm
The total height: 55 mm
Available in coatings: X-Matt GreenCoat Crown BT, Polyester gloss, Ultramat, Alu-zink, Zink, S-PURE, Safe Matt
Available foiling for the facade profile
Additional coating - Available with the DRIPSTOP anticondensation liner.
Minimal roof slope: 4° (7%)

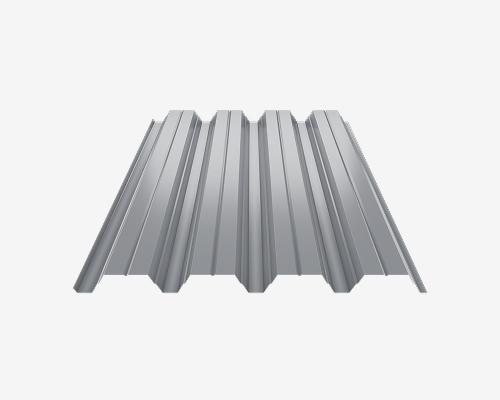

TRB - 60/944 Roof profile / Facade profile - Trapezoidal sheet metal
Total width: 974 mm
The effective width: 944 mm
Sheet thickness: 0,5 - 0,75 mm
Length of the module: 500 - 12000 mm
The total height: 60 mm
Available in coatings: X-Matt GreenCoat Crown BT, Polyester gloss, Ultramat, Alu-zink, Zink, S-PURE, Safe Matt
Available foiling for the facade profile
Additional coating - Available with the DRIPSTOP anticondensation liner.
Minimal roof slope: 4° (7%)

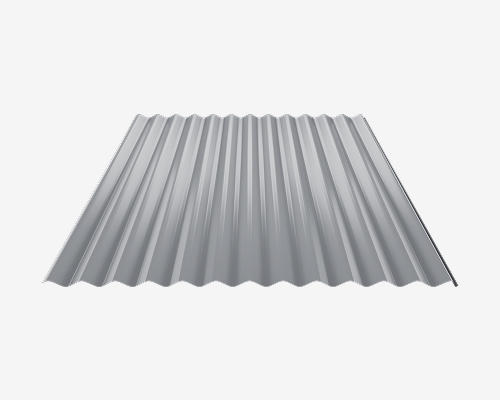

FB - 18/1100 Facade profile - corrugated sheet
Total width: 1138 mm
The effective width: 110 mm
Sheet thickness: 0,5 - 0,7 mm
Length of the module: 500 - 6000 mm
The total height: 5 mm
Available in coatings: X-Matt GreenCoat Crown BT, Polyester gloss, Ultramat, Alu-zink, Zink, S-PURE, Safe Matt
Available foiling for the facade profile

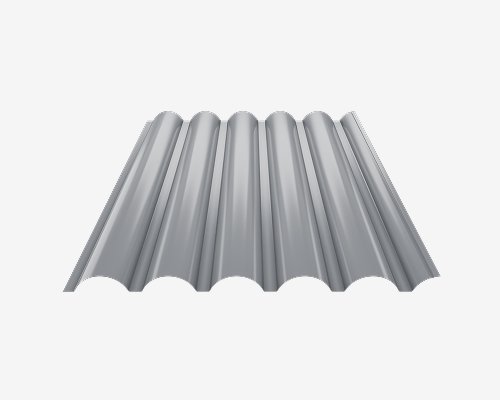

FEB - 50/930 Roof profile / Facade profile - corrugated sheet
Total width: 1032 mm
The effective width: 930 mm
Sheet thickness: 0,7 mm
Length of the module: 500 - 12000 mm
The total height: 50 mm
Available in coatings: Polyester gloss, Alu-zink, S-PURE, Safe Matt
Available foiling for the facade profile
Minimal roof slope: 4° (7%)

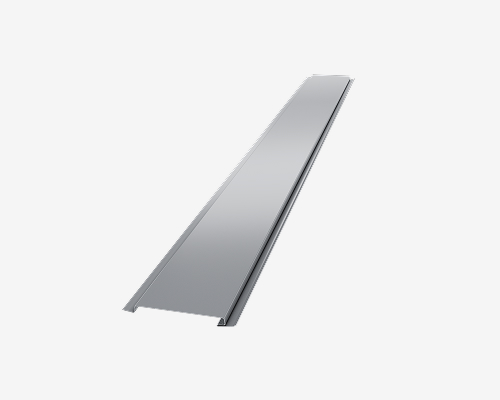

PEG - 1/270 or 280 Facade panel
Total width: 335 mm
The effective width: 270/280 mm
Sheet thickness: 0,7 - 1,0 mm
Length of the module: 900 - 6000 mm
The total height: 23/33 - 36 mm
Available in coatings: Polyester gloss, Zink, Alu-zink, S-PURE, Safe Matt
Other sizes are available as custom-made items

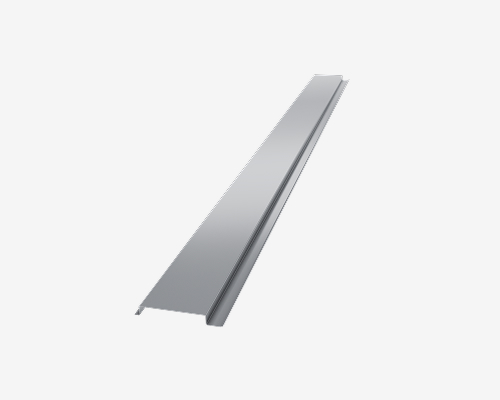

PEG 2/215 Facade panel
Total width: 225 mm
The effective width: 215 mm
Sheet thickness: 0,7 - 1,0 mm
Length of the module: 900 - 6000 mm
The total height: 30 mm
Available in coatings: Polyester gloss, Zink, Alu-zink, S-PURE, Safe Matt
Other sizes are available as custom-made items

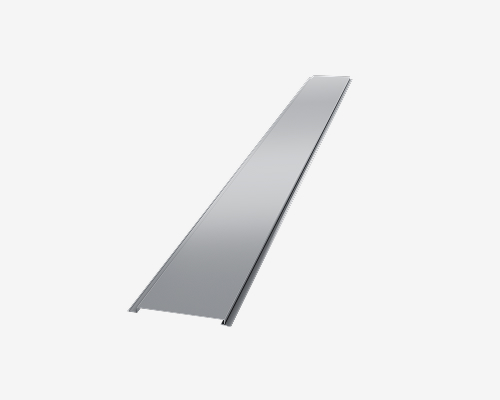

PEG - 3/215, PEG - 3/320 Facade panel
Total width: 255/360mm
The effective width: 215/320 mm
Sheet thickness: 0,5 - 0,8 mm
Length of the module: 900 - 6000 mm
The total height: 25 mm
Available in coatings: X-Matt GreenCoat Crown BT, Polyester gloss, Ultramat, Alu-zink, S-PURE, Safe Matt
Other sizes are available as custom-made items
Advantages of trapezoidal sheets
and facade profiles.

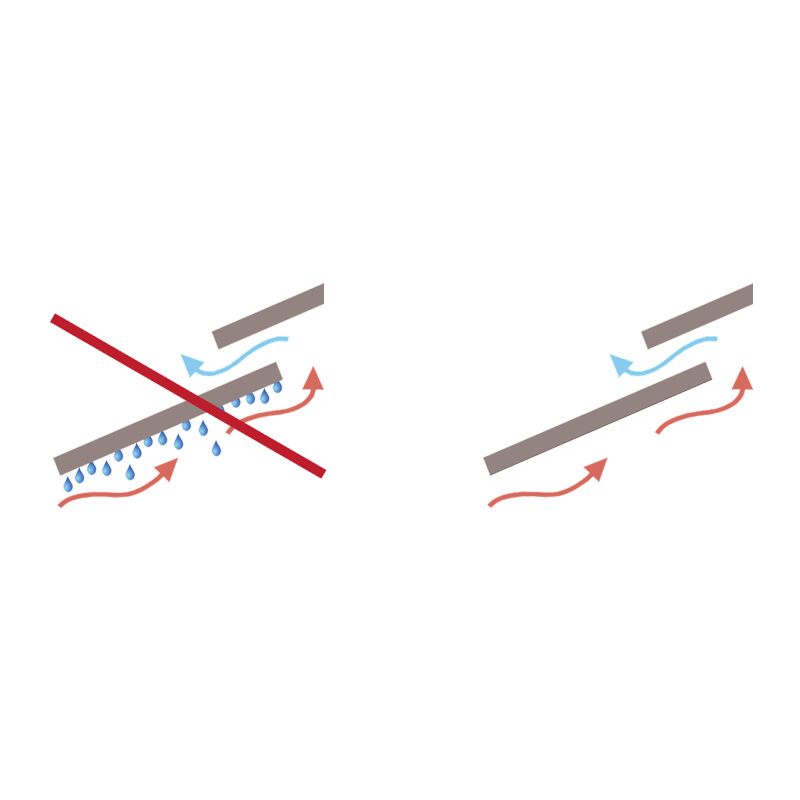

Felt – Anti-condensation underlayer.
In buildings with uninsulated roofs, water vapor can condense and cause moisture damage. A felt coating absorbs the resulting condensation and releases it again under suitable conditions. This effectively reduces damage caused by moisture and condensation.

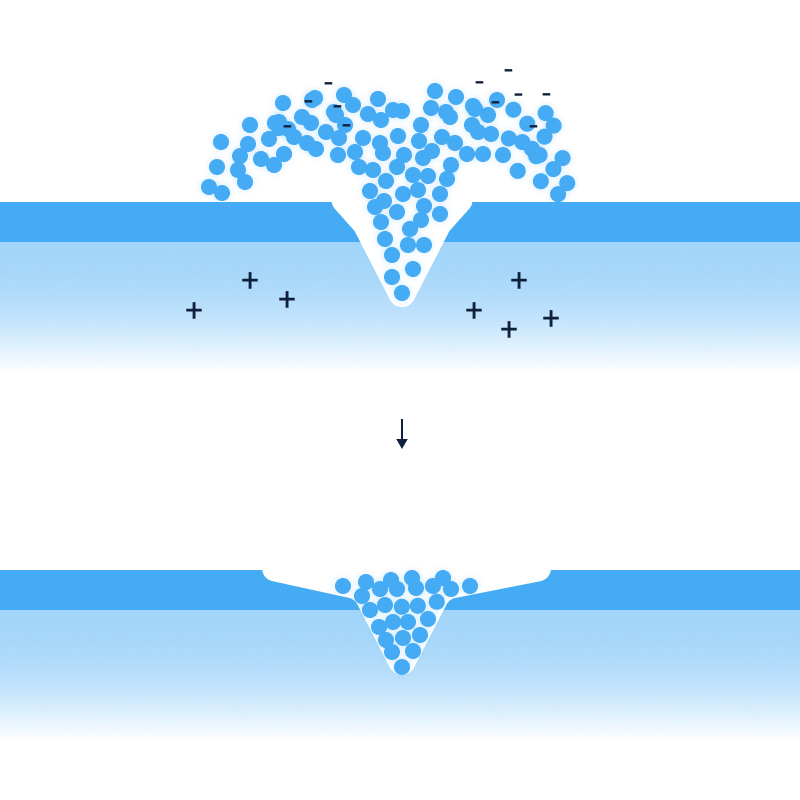

Electrolytic protection.
Electrochemical protection slows down corrosion processes in steel. Galvanized or aluzinc-coated steel sheets serve as the base material. The zinc layer provides dual protection: it acts as a barrier against external influences and simultaneously provides cathodic protection at cut edges and areas of potential surface damage.
Up to 30 years warranty.
High-quality raw materials, precision manufacturing, and modern, automated production facilities ensure consistently high product quality. This allows us to offer long-term warranties, which vary depending on the coating selected.
Colors
